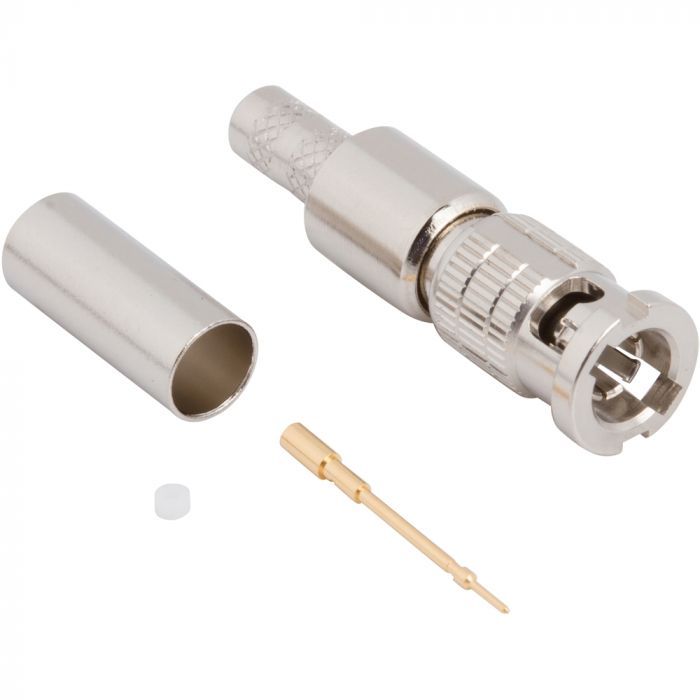

HD-BNC STR PLUG FOR BELDEN 1855A/4855R CABLE

1. BODY, BAYONET SLEEVE, WASHER & RETRAINING RING - BRASS, NICKEL PLATING

2. REAR BODY - BRASS, GOLD PLATING
3. CONTACT - PHOSPHOR BRONZE, GOLD PLATING
4. FERRULE - COPPER, NICKEL PLATING
5. INSULATORS - PTFE, NATURAL
6. GASKET - FLUOROSILICONE, BLACK
7. SPRING - STAINLESS STEEL, PASSIVATED
8. IMPEDANCE: 75 OHMS
9. FREQUENCY RANGE: DC - 18GHz
10. RETURN LOSS: 30dB MIN @ DC - 6GHz
11. RETURN LOSS: 15dB MIN @  6 - 12GHz
12. DIELECTRIC WITHSTANDING VOLTAGE: 1000 VRMS, MIN
13. INSULATION RESISTANCE: 10, 000 MEGAOHMS MIN
14. DURABILITY: 500 CYCLES MIN
15. TEMPERATURE RANGE: -65℃ to +165℃
